You are here: Home / Our products / Air filtration / Machine extraction / Machine safety enclosure HI10VP
Download technical documentation

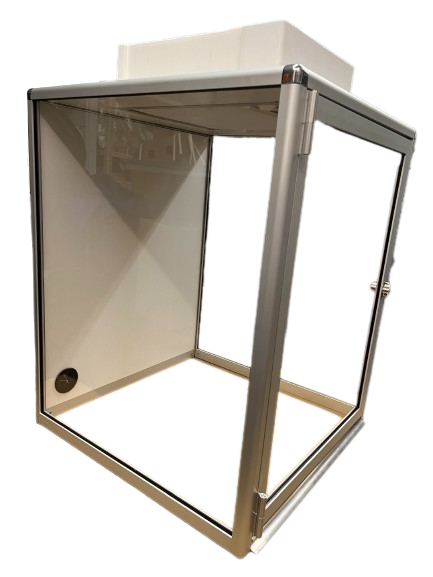

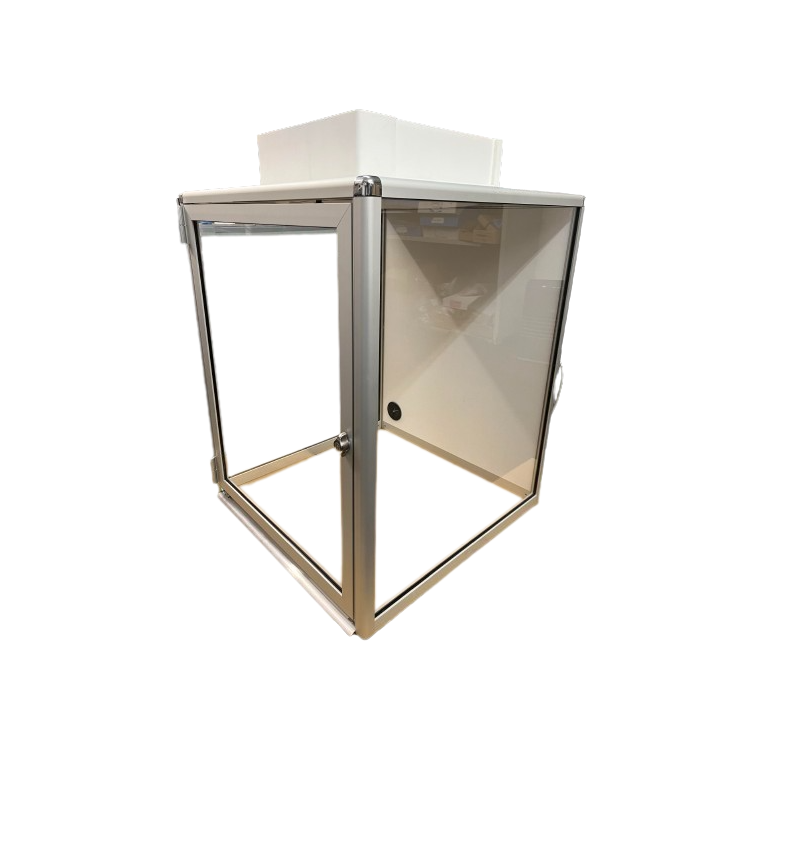

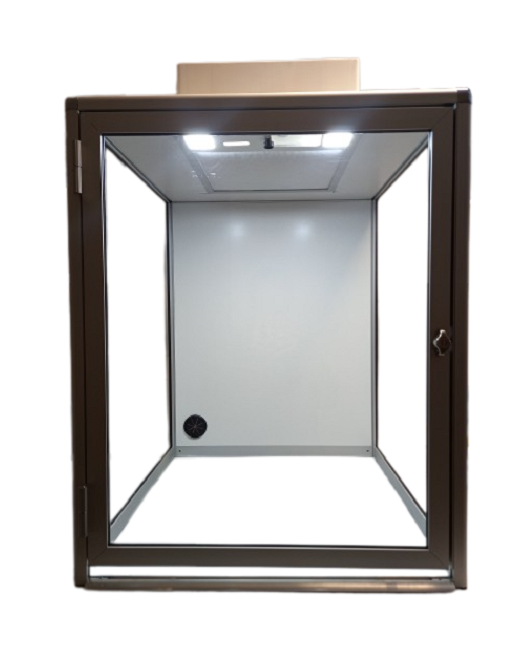

Machine safety enclosure HI10VP

Heavy particles and VOCs

Companies use various stand-alone equipment such as 3D printers, laser markers and many more machines. However, the use of these machines can cause health and environmental risks due to fine particles, gases and residues of molten material released into the air. It is therefore important to take steps to protect operators from potential exposure to these pollutants.

Our stand-alone machine safety enclosure is designed to meet these needs by providing an effective engineered solution to protect operators from potential exposure to these pollutants.

Our enclosure is constructed using an aluminum frame, filled with melamine panels and PET-G panel . This robust and durable construction ensures effective isolation of pollutants. It is also equipped with an extraction box with a filtration system that covers the main risks associated with products released into the air, such as fine particles, gases and residues of molten material.

To define the enclosure adapted to your needs, it is important to determine the potential pollutants emitted by the equipment and the types of filters to eliminate them.

Request a quote
Product already in the list.
Browse the list
Categories: Air filtration, Machine extraction
  • Technical description

Enclosure

Structure in satin aluminum profiles

Rear panel and top filling in 19 mm thick melamine panel

Side panels in PET-G and door

Latch closure



Variable flow: from 50 to 450 m3/h

Power: 80W

Power supply: 110 – 230 V / 50 Hz – 60 Hz

Noise: at 50 m3/h = 40 dB – at 150 m3/h < 60 dB

Weight: 27kg

Internal dimensions L x H x P: 600 x 774 x 600 mm

External dimensions L x H x l: 660 x 800 x 660 mm



Filtering possible:

Internal recirculation:

  • For cases of release of heavy particles and VOCs: protective pre-filter + activated carbon filter
  • For cases of exclusive release of heavy particles (> 5µm): particle filtration (class M5)

External discharge:

  • Possible thanks to a connection at the box outlet, Ø125 mm. A simple (class G4) particulate filter is used to protect the engine.

Maintenance: Periodic filter change

User manual
Assembly instructions
Plan 3D
