You are here: Home / Our products / Air filtration / Capture hood / HI-CAPT capture hood
Download technical documentation

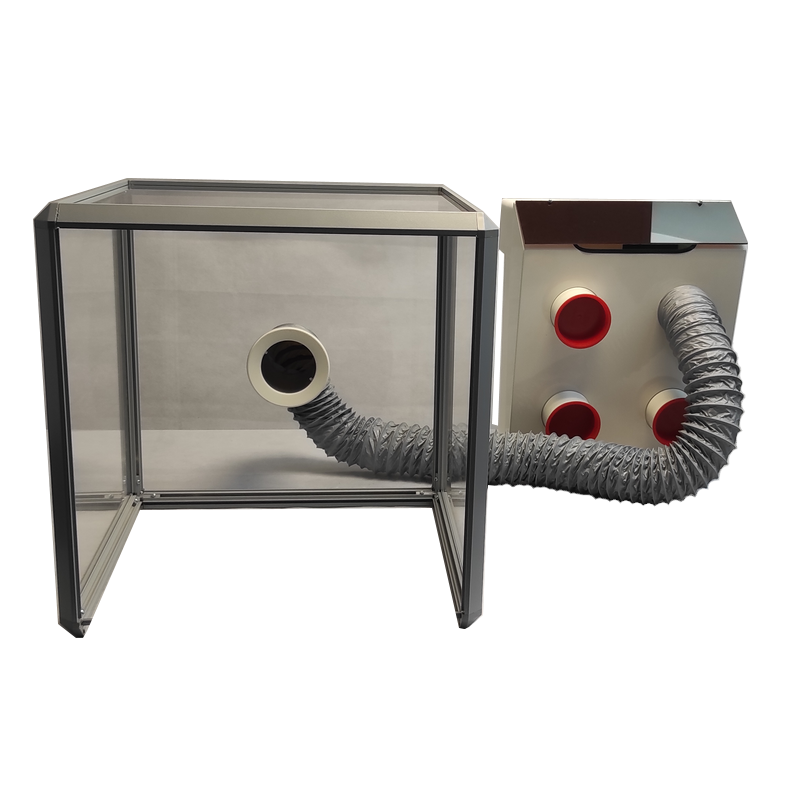

HI-CAPT capture hood

Suction system with PMMA enclosure box and HI4P4S extraction hood

1553.00 € HT

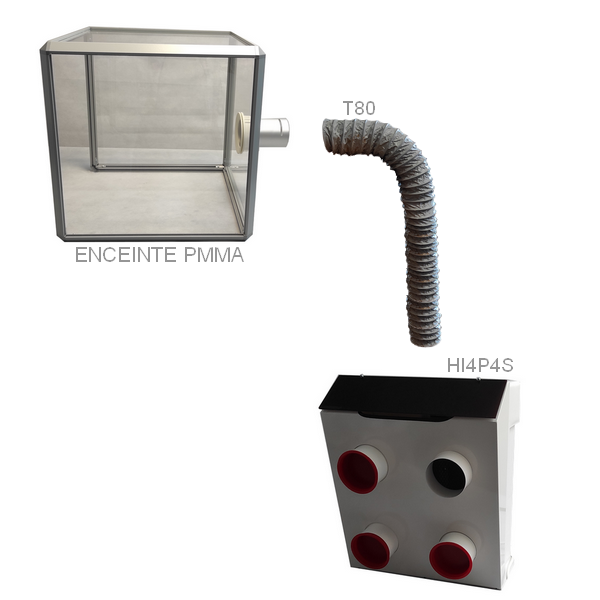

System including:

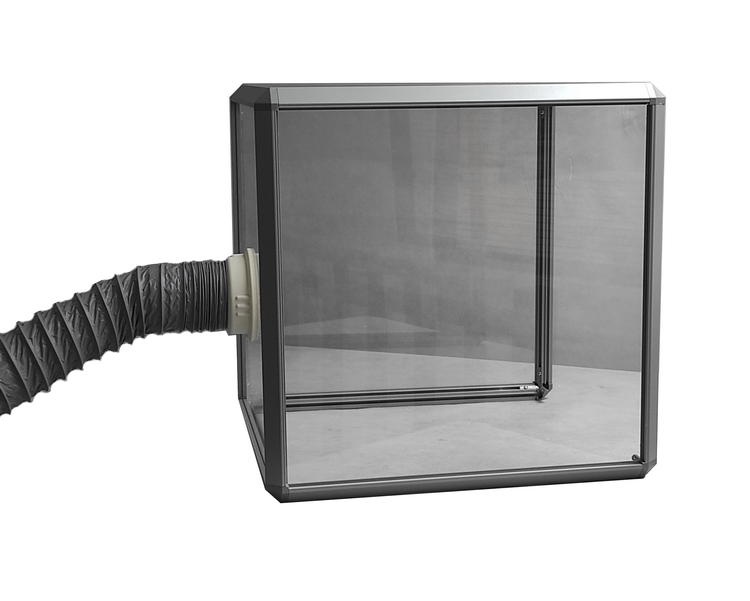

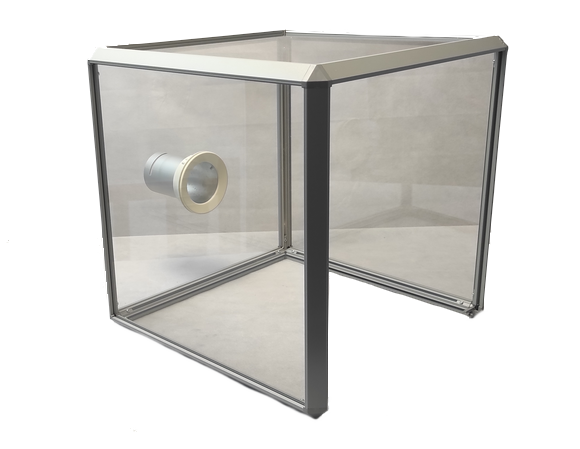

• Enclosure structure in satin anodized aluminum profiles and 4 mm PMMA filling, dimension 450 x 450 x 450 mm, with connection hose Diam 80 mm, delivered assembled

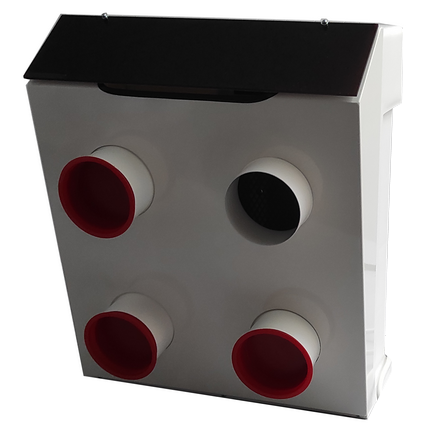

• HI4P4S extraction hood for internal recycling or external rejection system

Use :
– Use of powdery materials
– Particle production (grinding, etc.)
– Application of solvents, cleaning of parts, etc.

  • Optimal protection of the application area
  • High visibility thanks to its glass sides
  • Allows observation from above
  • Very light, can be moved very easily on the worktop
  • Compatible with particulate filtration, activated carbon or external rejection
  • Autonomous thanks to its suction hood

Filters are sold separately. Choose the filter that suits your needs here.

Request a quote
Product already in the list.
Browse the list
SKU: HI_CAPT Categories: Capture hood, Machine extraction
  • Technical description

Technical data

Variable airflow (without filter) : From 50 to 450 m3/h
Power : 80 W
W x H x D suction hood : 420 x 341 x 146 mm
W x H x D PMMA enclosure structure : 450 x 450 x 450 mm
Weight : 10 kg
Mains supply : 80-230 V / 50-60 Hz
Maintenance : Periodic change of the filter

User manual
