Thermal stripping allows the insulation and sheaths of cables made of resistant materials to be removed by the application of heating electrodes at an instantaneous and very high temperature.
Our range meets any need, whether standard or specific.
THERMAL KNIVES
► Two possible models:

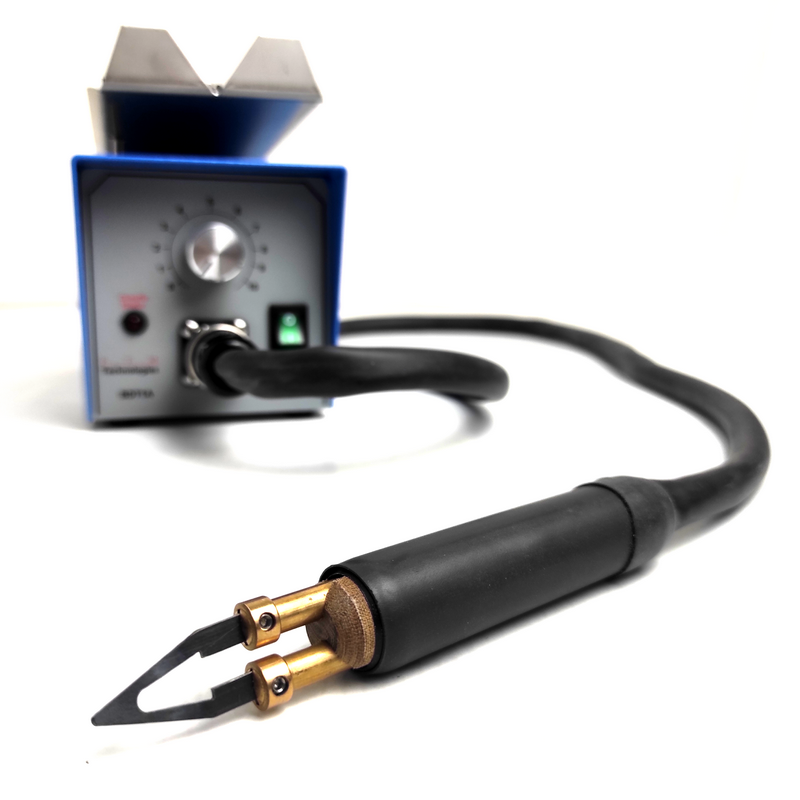

• Thermal knife for stripping and windowing medium cables, set CCT + BDT1A
• Thermotranchet for stripping and windowing large cables, ZTS24 assembly + GG2 box
Power supply: 230 V / 50 Hz
Power: 80 W
Dimensions L x W x H mm: 200 x 100 x 100 mm
Weight: 2.5 kg
Heater trigger: Taking in hand of the pliers
GG2 box
Power supply: 230 V / 50-60 Hz
Power: 250 W
Output voltage: 1.9V
Output current: 135 A
Dimensions L x W x H mm: 300 x 190 x 210
Weight: 11 kg
78 Rue Raymond Poincaré
92000 Nanterre – FRANCE
Tél. +33(0)1 40 86 00 09
Fax +33(0)1 40 86 16 45
BDT3A, thermal stripper with tactile contactor
