Electric stripping machine for copper enamelled wires
Automatic stripping machine for enamelled wires

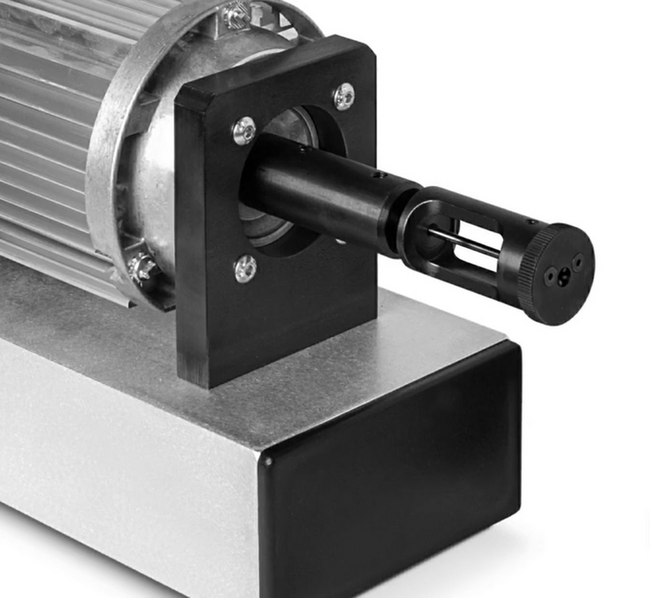

The Abfräsfix is an automatic machine to strip enamelled wires. The wire is pushed into the rotary stripping head to the length stop. The five blades rotate around the wire removing enamel.
The stripping length and the diameter are constantly variable.
For all heavy jobs, it is possible to use a flexible shaft.
The machine will be delivered with steel blades.
For resistant enamels, we can provide tougher blades made of high strength steel.
Wire Ø : 0.8-5.0 mm or 5.0-8.0 mm
Stripping length : up to 25 mm with stop (without stop up to 35 mm, max Ø 3 mm)
Power supply : 230 V, 50 Hz or 115 V, 60 Hz
Rotation speed : 2650 rpm
Width : 110 mm
Depth : 230 mm
Height : 140 mm
Weight : 4.5 kg
