You are here: Home / Our products / Air filtration / Overhead Fume Hood / HI9PKL Overhead fume hood with PVC curtain kit
Download technical documentation

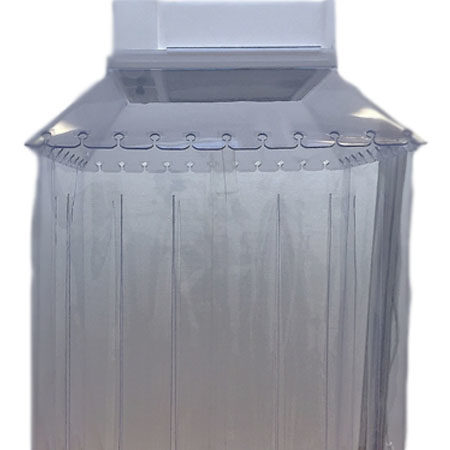

HI9PKL Overhead fume hood with PVC curtain kit

1845.00 € HT

Allows complete clearance of the workstation to hang with 4 chains (sold separately)
Visor in translucent PVC : 720 x 640 mm

Can be used :
– In recycling : active carbon filter or particle filter
– In outside rejection (dust filter+ exhaust duct Ø125 mm)

Utilization :
– Above a workstation to catch smokes and solvents
– Above a tray / a cleaning bin
– Above a solder bath / a mini wave…

Special visor provided with a peripheral cut for fixation of a PVC curtain kit (ref HI9PKL).
Height 970 mm, on 4 faces.
The suspended hood allows to confine all the volume above the workstation.
Implementation of the kit thanks to a simple and light system of binding allowing many configurations.

The filter is sold separately.

Request a quote
Product already in the list.
Browse the list
SKU: HI9PKL Categories: Air filtration, Overhead Fume Hood
  • Technical description

Overhead hood with visor and PVC curtain kit
Variable flow : 50 to 450 m3/h
Power : 80 W
L x H x D : 720 x 300 x 640 mm
Weight : 8 kg
Power supply : 230 V / 50 Hz
Maintenance : Periodic change of the filter
Rear exit evac : Yes, exhaust evacuation Ø125 mm

User manual
